| Количество минимального заказа: | 1 |
| транспорт: | Land,Ocean,Air |
Оттенок:
Модель: 140-190
марка: Гоюэ
Origin: Китай
гарантийный срок: 1,5 года
Послегарантийное обслуживание: Видео техническая поддержка, Онлайн поддержка
место происхождения: Китай
Система обслуживания: Онлайн поддержка, Видео техническая поддержка
Поддержка настройки: OEM, ODM
The file is encrypted. Please fill in the following information to continue accessing it
| Parameter | Specification |

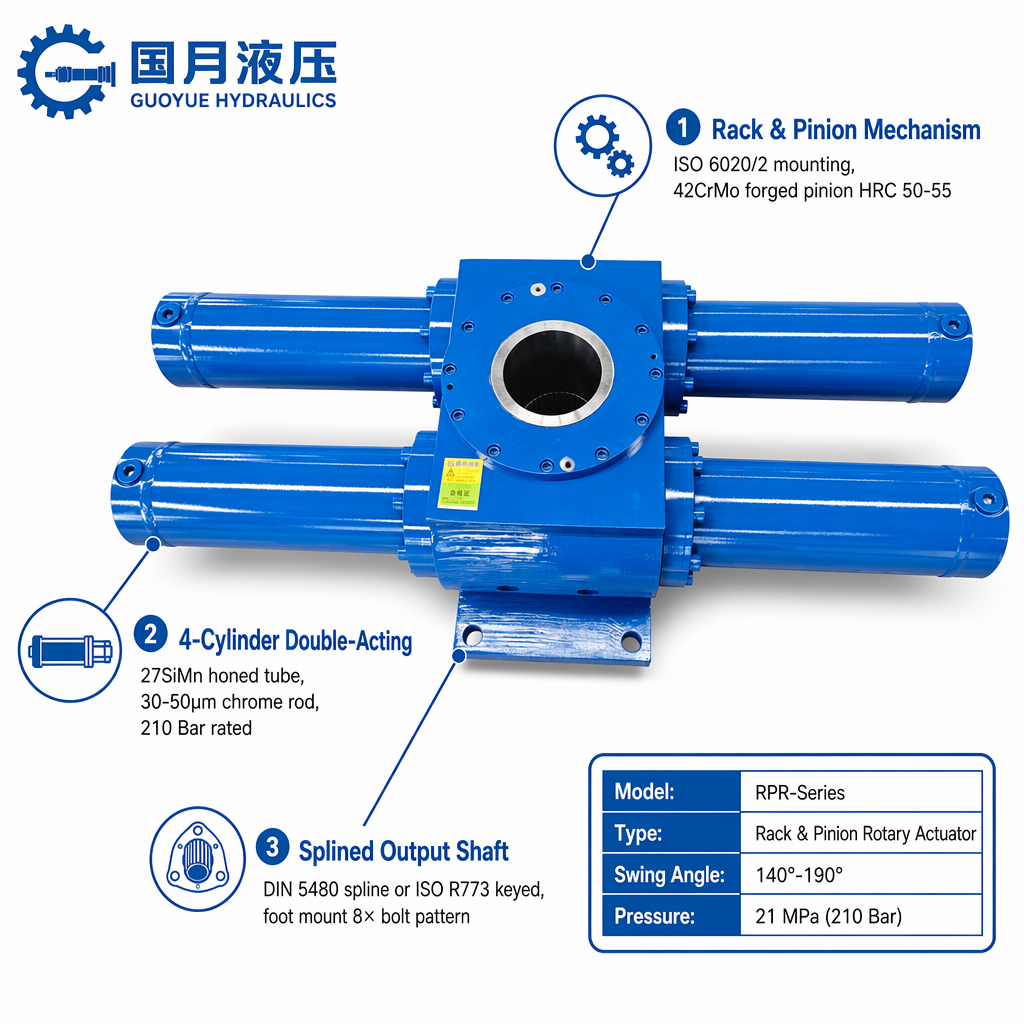

| Model | RPR-Series Rack & Pinion Rotary Actuator |
| Swing Angle | 140° / 160° / 180° / 190° (configurable) |
| Rated Pressure | 210 Bar |
| Peak Pressure | 250 Bar |
| Torque Output | Up to 50,000 Nm (model dependent) |
| Bore Range | 40 mm – 200 mm |
| Rod Surface | Hard chrome plated, 30–50 μm |
| Seal Material | PU + PTFE (NBR / Viton optional) |
| Output Shaft | Splined (DIN 5480) or Keyed (ISO R773) |
| Mounting Standard | ISO 6020/2, foot / flange mount |
| Port Size | G 1/2″ – G 1″ / SAE flange |
| Cylinder Tube | 27SiMn / CK45 honed, Ra ≤ 0.2 μm |
| Operating Temp | -20°C to +80°C (Viton: -20°C to +120°C) |
| Paint Finish | RAL 5015 Sky Blue, 2K PU topcoat |
